Brilliant Lighting Ezy-Scan PIR Security Sensor With Corner Mount Black - 20044/06 + 20243/06

Brilliant Lighting
$42.42
10 days
20044/06 + 20243/06
+ −
Or use
Features

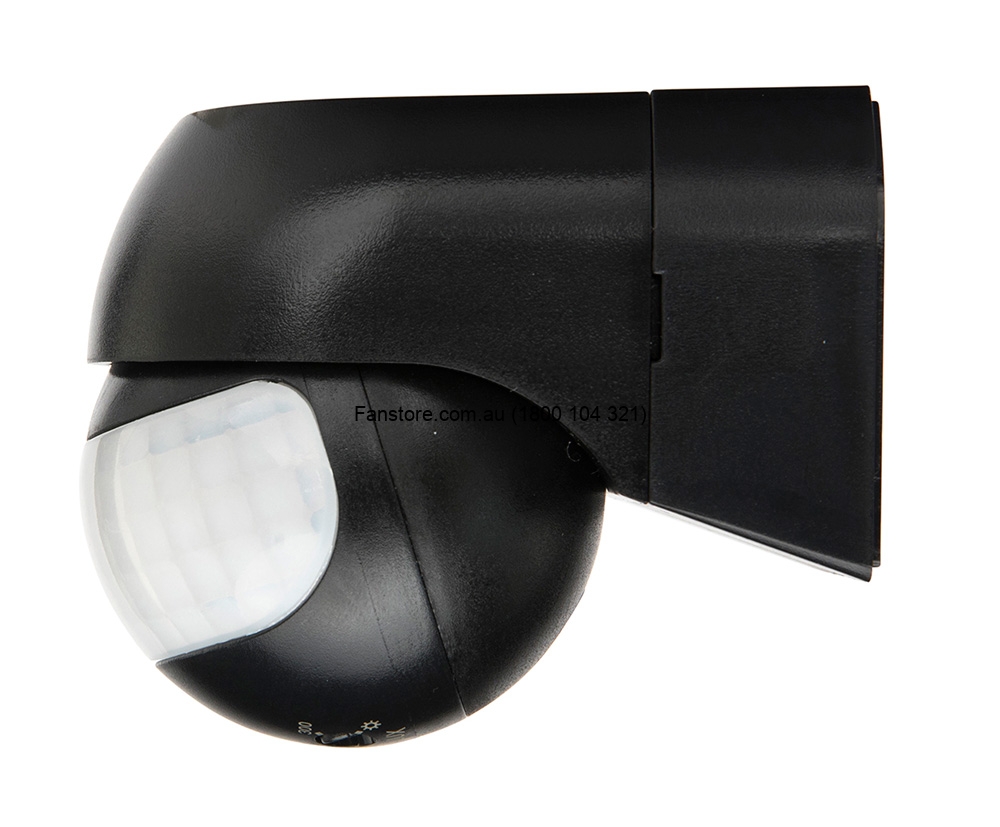

The Ezy-Scan 180° PIR Security Sensor is suitable for installations on the wall with Adjustable settings.

Specifications
- Passive Infra-red technology
- Multi-segmented lens for better detection
- Adjustable sensing angle
- Reliable 3-wire design
- Adjustable time and lux level
- Manual override
- LED Compatible
- IP44 weather-resistant rated
- Resets to AUTO mode after 8 hours
- Detection Scan: 180°
- Lux control level: 3-2000LUX (adjustable)
- Max Load: 800W Incandescent lamp
- Max Load: 400W Fluorescent lamp
- Max Load: 200W LED lamp
- 2-Year Warranty

Dimensions
- Height: 66mm
- Width: 55mm
- Projection: 80mm

Manufacturer
:
Brilliant Lighting

Catalog (EzyScan-Datasheet.pdf, 895 Kb) [Download]
