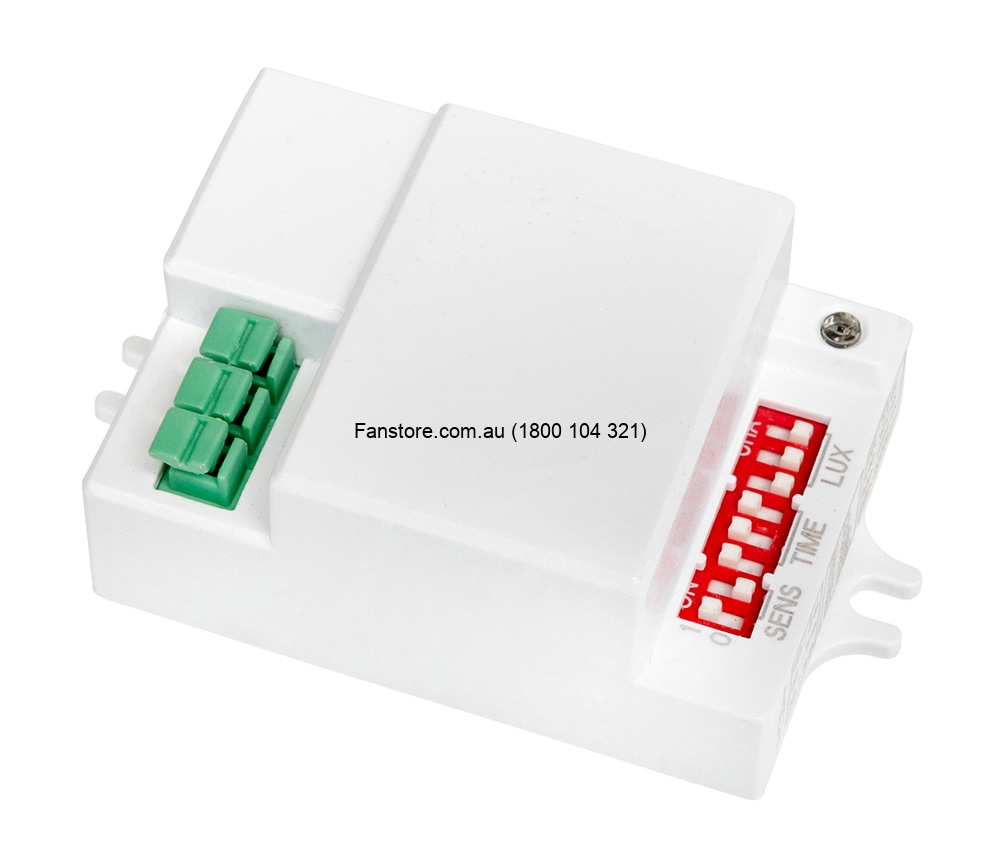

Brilliant Lighting Retro-Fit Microwave Sensor - 20052/05
Features
The Retro-Fit microvave Swcurity Sensor is suitable for installations in oyster lights.
Specifications
- Automatically activated by motion and light level
- Compact size to retro-fit into most ceiling and wall lights
- Wide detection area
- Motion can be detected through plastic, glass and thin non-metal materials
- Accurate adjustable time, lux level and detection area via DIP switches
- Reliable 3-wire design
- HF system : 5.8GHz
- IP rating: IP20
- Lux control level : <3-2000LUX (adjustable)
- Installation height : Wall 1.5-3.5m
- Ceiling 2-6m
- Detection range : Wall 180°
- Ceiling 360°
- Detection distance : Wall 5-15m (adjustable)
- Ceiling 1-8m radius (adjustable)
- Max Load : 1200W Incandescent lamp
- Max Load : 300W Fluorescent lamp
- Max Load : 150W LED lamp
Dimensions
- Length: 68mm
- Width: 40mm
- Height: 25mm
The Retro-Fit microvave Swcurity Sensor is suitable for installations in oyster lights.
Specifications
- Automatically activated by motion and light level
- Compact size to retro-fit into most ceiling and wall lights
- Wide detection area
- Motion can be detected through plastic, glass and thin non-metal materials
- Accurate adjustable time, lux level and detection area via DIP switches
- Reliable 3-wire design
- HF system : 5.8GHz
- IP rating: IP20
- Lux control level : <3-2000LUX (adjustable)
- Installation height : Wall 1.5-3.5m
- Ceiling 2-6m
- Detection range : Wall 180°
- Ceiling 360°
- Detection distance : Wall 5-15m (adjustable)
- Ceiling 1-8m radius (adjustable)
- Max Load : 1200W Incandescent lamp
- Max Load : 300W Fluorescent lamp
- Max Load : 150W LED lamp
Dimensions
- Length: 68mm
- Width: 40mm
- Height: 25mm
