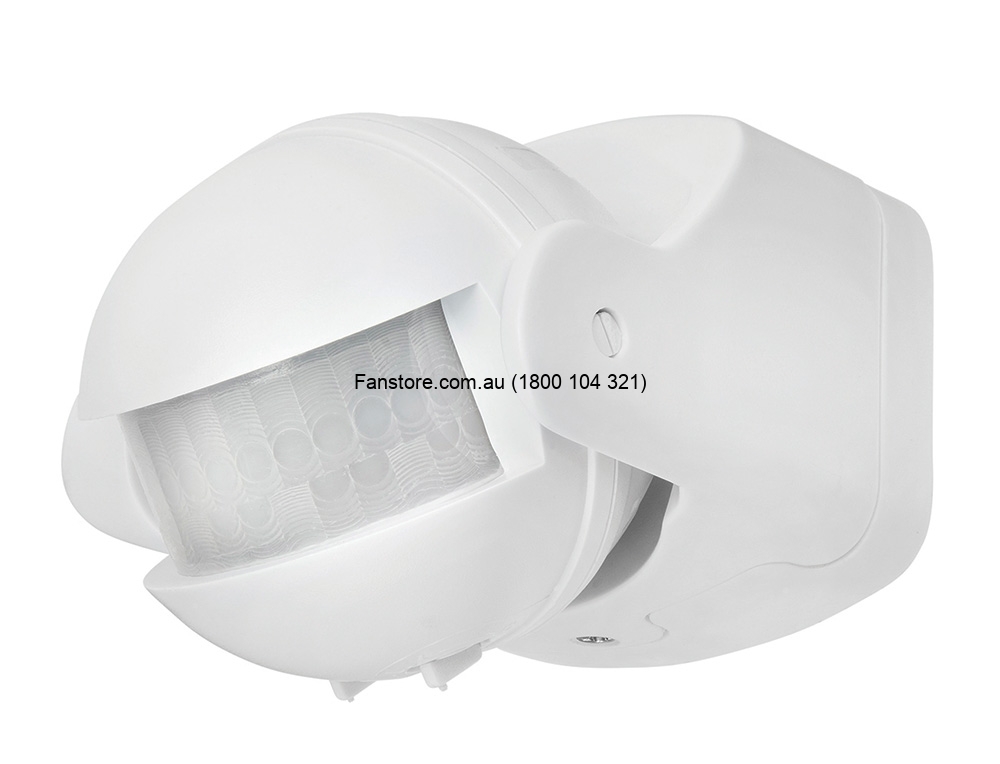

Brilliant Lighting Uni-Scan PIR Security Sensor White - 18060/05

$24.50
10 days
18060/05
+
Or use
Features
The Uni-Scan Series II 180° PIR Security Sensor is suitable for installations on the wall or ceiling with Adjustable settings.

Specifications
- Passive Infra-red technology
- Multi-segmented lens for better detection
- Reliable 3-wire design
- Adjustable time and lux level
- Manual override
- LED Compatible
- IP44 weather-resistant rated
- Wall or ceiling surface mount
- Resets to AUTO mode after 8 hours
- Detection Scan: 180°
- Max Load: 1000W Incandescent lamp
- Max Load: 300W Fluorescent lamp
- Max Load: 150W LED lamp
- 2-Year Warranty

Dimensions
- Backplate: 85mm x 78mm
- Projection: 100mm

Manufacturer
:
Brilliant Lighting

Catalog (Flexiscan-Datasheet.pdf, 1,060 Kb) [Download]
