CLA 316 Stainless Steel Recessed Step Light - 240V - CLA1912
Features

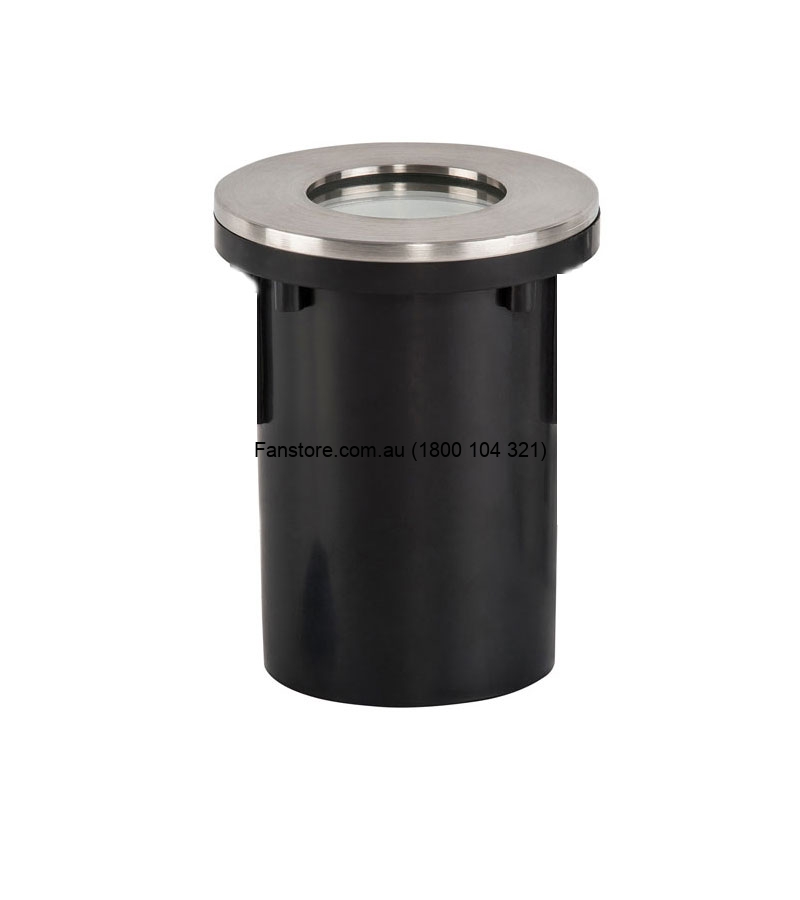

240V Recessed Wall/Steplight is a professional and attractive steplight choice which is designed to easily be recessed into a set of steps to create high illumination of a night for easy viewing.
This step light is constructed with 316 marine grade stainless steel for added strength and resistance against wear and tear. It also features a tempered glass construction and is designed suitable for delivering high light reflection and illumination.
This steplight is designed to be placed where adequate drainage exists, and can accommodation for 20W max globes making it ideal for delivering high light reflection and illumination. This light features an eyelid which helps to direct the light where needed without being too bright and glary.
Specifications:
- Round faceplate
- Stainless steel 316 marine grade faceplate
- Tempered glass which can with stand weight up to 1000kg
- 240V fittings supplied with GU10 35W halogen globe (max.35W)
- Remote control gear required
- Control gear not included
- Suitable for use with LED globes
- Sleeve provide
Dimensions:
- Diameter: 88mm
- Cutout: 85mm
NOTE:
- Bottom of hole must be lined with gravel to allow drainage
- The casing / cannister / sleeve must not be sitting on earth / sand
- Circular outdoor grade, rubber sheathed cable required
- Terminal block is located on an internal baseplate which must be accessed by removing the faceplate. 2 screws holding the baseplate to the fitting need to be removed to allow cable access
- Cable must be fed through the glands into the terminal block
- Rubber gland nut must be tight to ensure water does not enter fitting
- Casing/ cannister / sleeve must be used
- Additional silicone is recommended around cable entry
- Concrete should be used in the space between the casing / cannister / sleeve and the side of the hole
