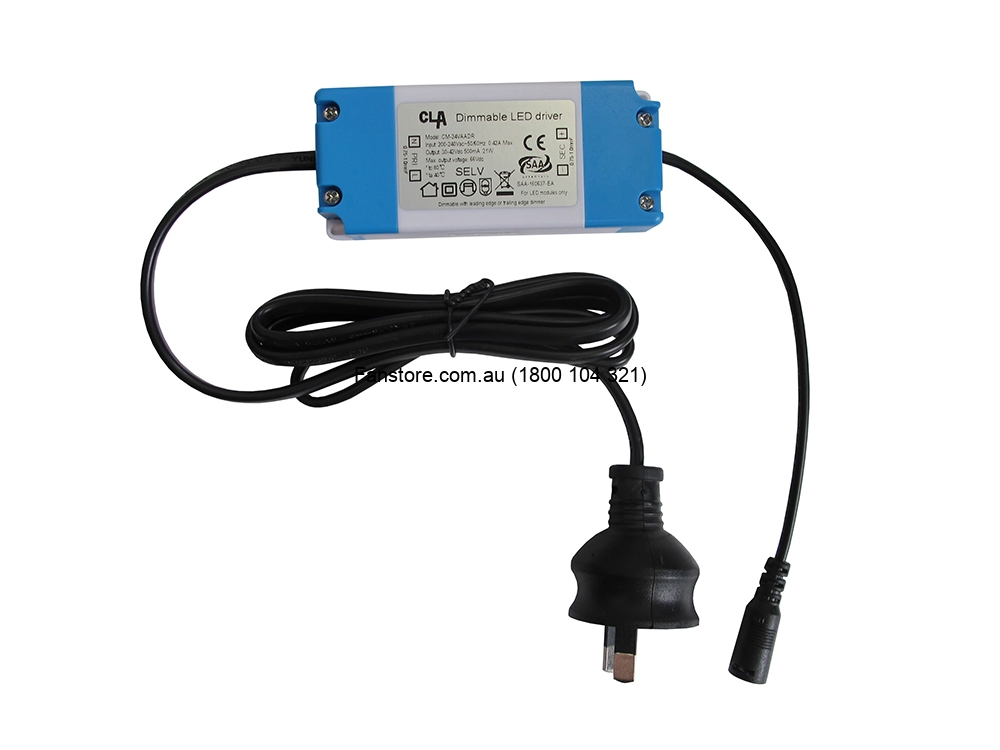

CLA Dimmable 18W LED Driver For Panelm04 - CM-24VAADR

Cla Lighting
$46.75
10 days
CM-24VAADR
+ −
Or use
Dimmable LED Driver for Panelm series. Driver LED Dimm 18W for Panelm04

Specifications
- Input voltage: 200-240V AC 50/60Hz
- Output voltage: 30-42V DC
- Output Current: 500mA
- Load: 15W - 20W
- Ambient temp: -10 to 40°C
- Life time: 30,000hrs
- IP20 for indoor use only
- Suitable for 2-way switching
- Suitable for use with PIR sensor
- 3 year replacement warranty

Tested and recommended dimmers
- CLIPSAL: 32ELEDM,32E450UDM, 31E2PUDM, 32E450LM
- HPM: CAT250, CAT250L, CAT250T, CAT400T
- CLA: LYNX, VELA
- LEGRAND: Cat AR400A3PM

Max Panels (Drivers) Per Dimmer
- PANELM01-02: 2 Pieces
- PANELM03: 1 Piece
- PANELM04: 5 Pieces

Manufacturer
:
CLA Lighting

Catalog (PANELM01-04___CM_DRIVER_NP_20181205.pdf, 547 Kb) [Download]
