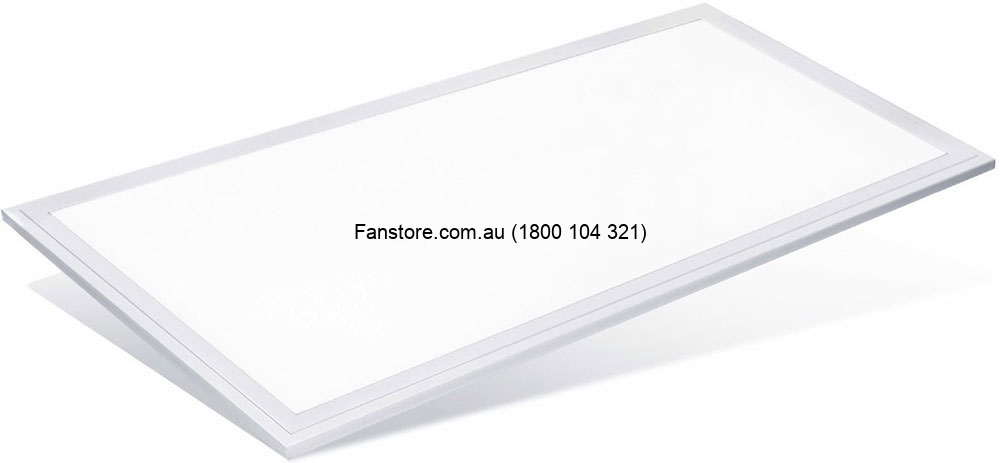

CLA Interior 60W T-Bar LED High Output Panel Multi / Tri-Colour - Panelm03
The High Output LED Panel light 60W ealuminium frame powder coated finish with high efficiency opal polystyrene back diffuser is a Tri-colour which means by a dip switch the colour temperature can be changed from 3000K Warm White to 4000K Cool White or even a 6500K Daylight.
This is so easy which can be done on site.
Specifications
- Input voltage: 220~240V AC 50/60Hz
- Wattage: 60W
- SMD2835 LED chips
- CCT changeable: 3000K - 4000K - 6500K
- Lumens: 4800 Lumens / 5100 Lumens / 5000 Lumens
- CRI: 80
- Beam: 110°
- IP rating: IP20
- Material: aluminium, PMMA & PS
- White trim/frame
- Power factor: 0.95
- Flex & plug with male joiner included (L: 1200mm)
- External driver with female joiner
- Driver dimensions: (L: 140 x W: 40.5 x D: 30mm)
- Distance lead to driver: 1220mm
- Driver to panel: 300mm
- Ambient temp: -20 to + 40°C
- Suitable for 2-way switching
- Suitable for use with PIR & microwave sensors
- Anti-aging, UV stabilised acrylic cover with excellent light penetration
- Does not emit harmful UV or Infrared rays
- IPART & VEET approved (January 2018)
- Can be converted to dimmable when used with dimmable driver (SOLD separately)
Dimensions
- Length: 1195mm
- Width: 595mm
- Height: 9.2mm
