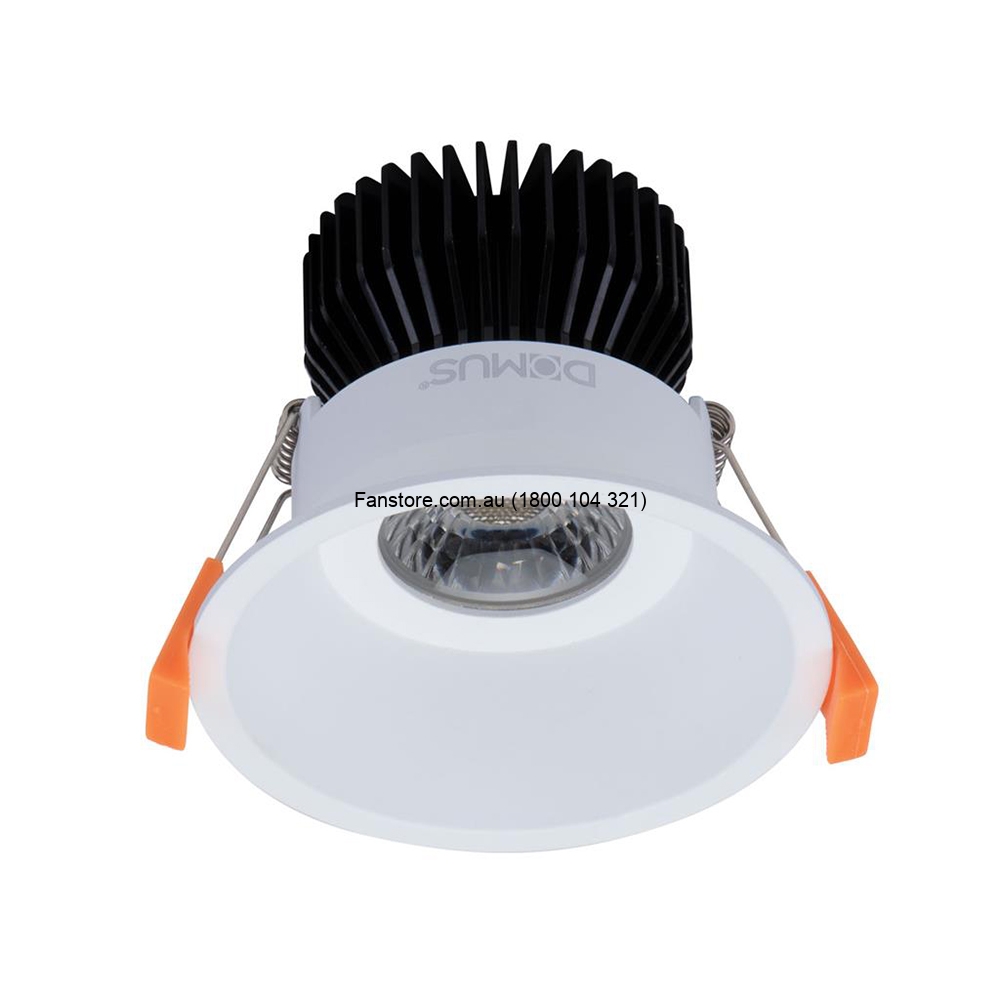

Domus Lighting Cell 12W LED 90mm Dimmable Downlight White / Tri-Colour - 20772
The Cell 12 D90 Kit is a plug and play LED lamp module and LED driver set.
They are the perfect solution for residential homes to commercial projects such as hotels, clubs, pubs and bars.
Designed not only as a replacement for traditional halogen lamps in most applications but also as a replaceable LED lamp and driver set for a range of click in frames, as a complete downlight solution. For retrofit, it's as easy as removing the standard MR16 halogen lamp and transformer and replacing it with the CELL lamp and LED driver.
It suits most MR16 downlight frames, depending on height.
As a complete lamp and frame solution, simply choose from a range of click in frames on offer to suit the style and décor.
Featuring a reflector style lens with a choice of 15°, 24°, 36° or 60° beam angle effects to suit ceiling heights or lighting effects.
Available in as a 12w Now with TRIO, the added option of changing the colour temperature output of the LED lamp module with a dip switch on the LED Driver. With the choice of Warm White, Neutral White or White colour temperature options to suit the desired light appearance. Complete with dimmable LED driver and flex and plug.
Backed by our Three Year Replacement Warranty.
Specifications
- Input Voltage: 240V AC
- Wattage: 12W
- LED type: COB
- IP Rating: IP44*
- Lamp Colour Temperature: Warm White 3000K, Neutral White 4000K, White 5700K
- Lumen Output: 870 Lumens, 1000 Lumens, 990 Lumens
- Beam Angle: 60°
- CRI: ≥80
- Dimmable: Yes
- Warranty Period: 3Y
- Warranty Type: Replacement
- * IP44 rating is from the underside of the down light once installed into the ceiling

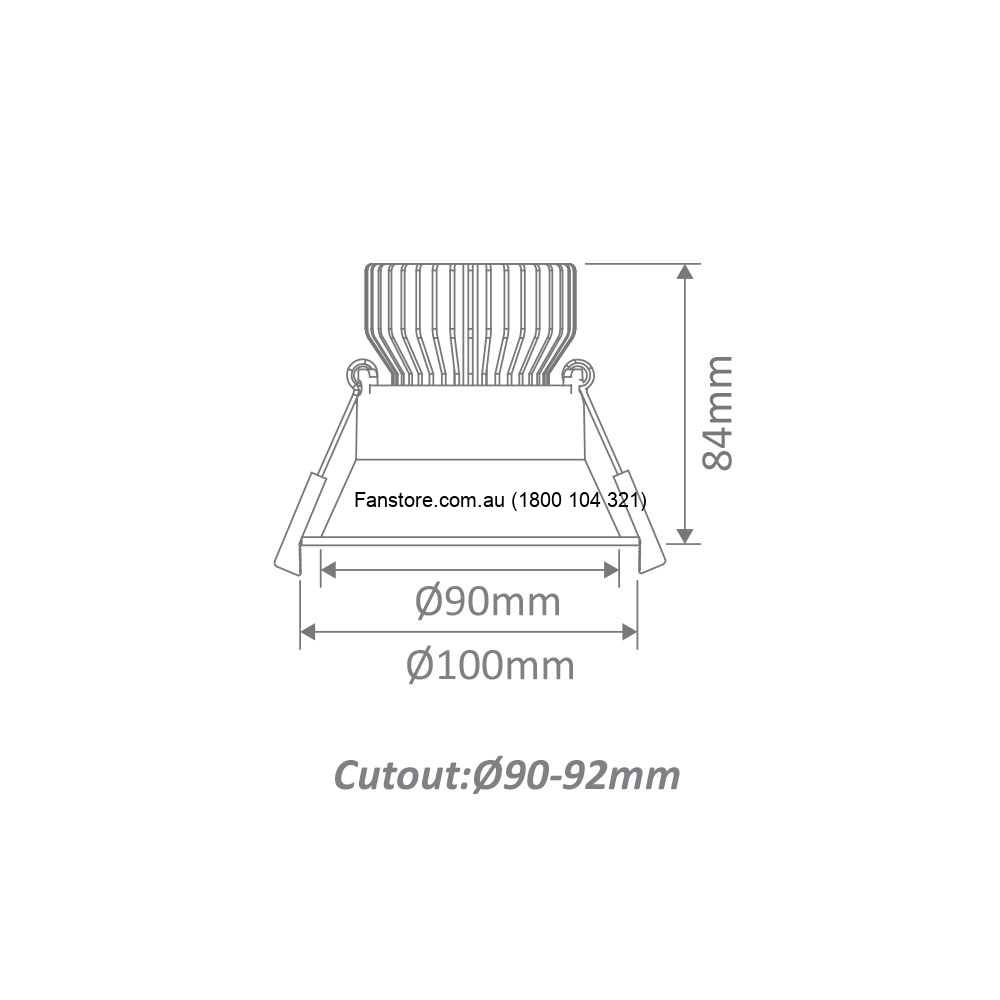

Dimensions
- Diameter: 100mm
- Depth: 84mm
- Cut-out Size: 90mm - 92mm
