Description:

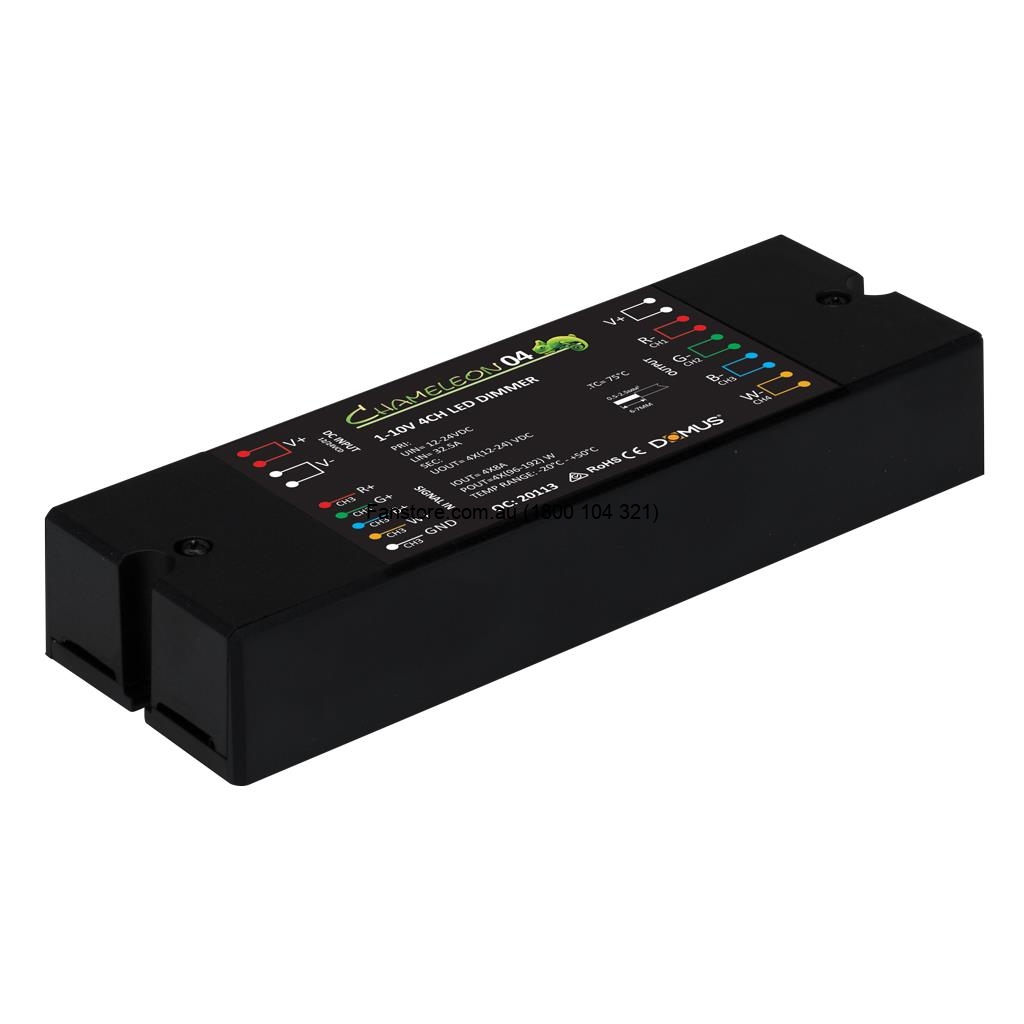

The CHAMELEON-04 is an interface designed for 0-10V signals. Designed for use with constant voltage 12-24VDC lighting products the CHAMELEON-04 offers seamless integration between automation systems and luminaires. Accepts standard 0-10V signal generated from any automation system.

Featuring 4CH of dimming allowing control over RGB, RGBW or single colour LED lighting products. For manual dimming control for situations were an automation system is not used a resistive pot can be used. These low voltage 0-10V dimmers are designed to fit into standard HPM or Clipsal switch plates.

Specifications
- Order Code: 20113
- Product Family: Chameleon

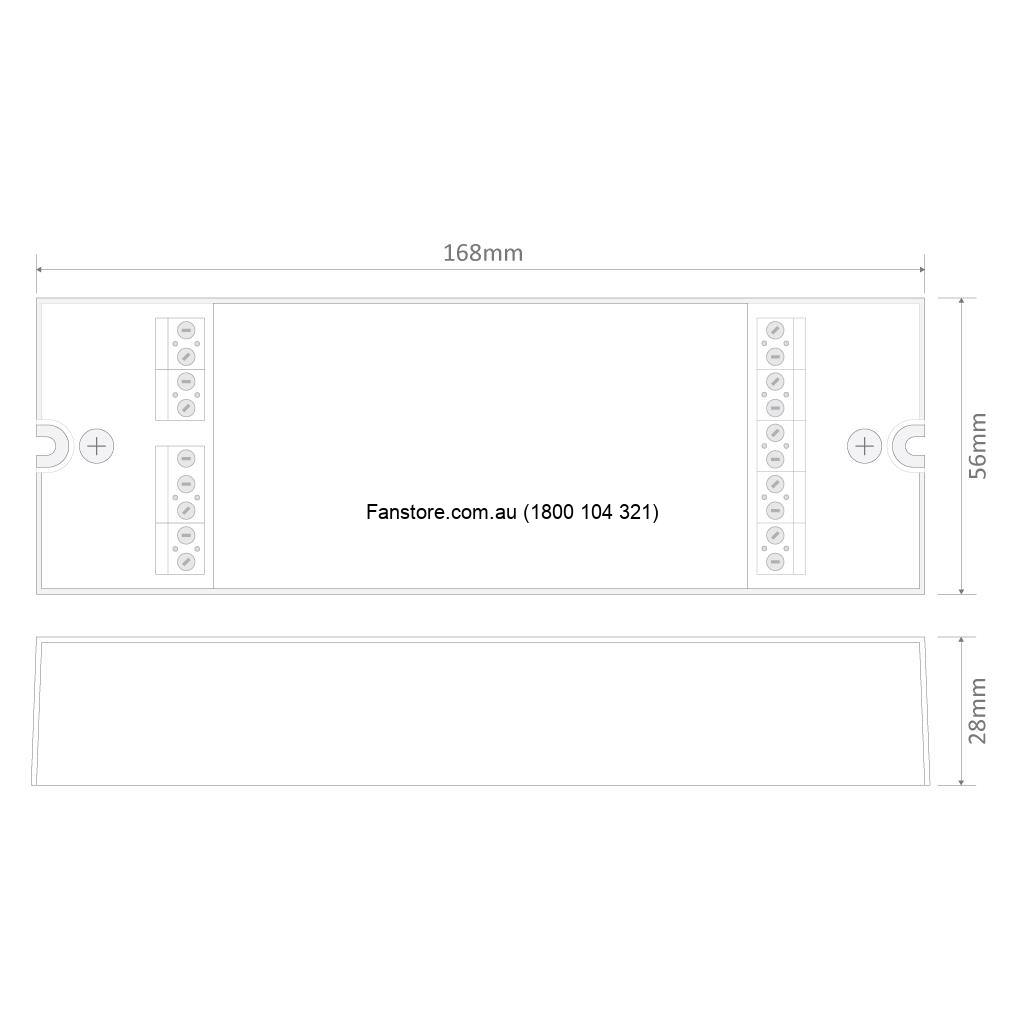

- Length (mm): 169MM
- Width (mm): 58MM
- Height (mm): 28MM
- Input Voltage: 12V-24V
- Application: Controller
- Warranty Period: 3Y
- Warranty Type: Replacement
