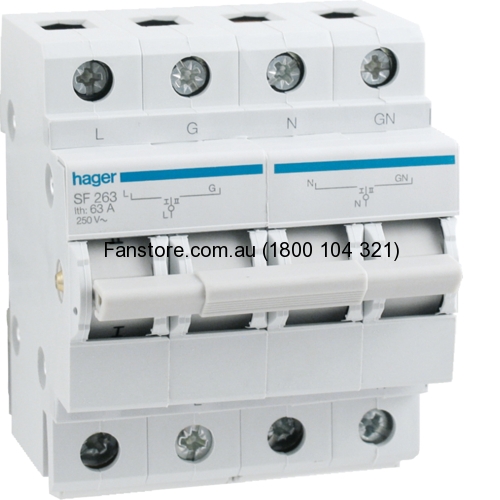

HAGER SF263 | Changeover Switch 2 Pole 63 Amp 240v 50Hz Din Mounted
HAGER SF263 | Changeover Switch 2 Pole 63 Amp 240v 50Hz Din Mounted
Technical Properties
- Rated current 63 A
- Rated operational AC voltage 400 V
- Frequency 50/60 Hz
- type of connection with screw
- Connection cross-sect. rigid cable 25mm²
- Connection cross-sect. flexible cable 16mm²
- Number of mechanical operations 100000
- Electrical durability at nominal load in AC21in
- operating cycles 5000
- Operating temperature -20 to 50 °C
- Storage temperature -40 to 80 °C
- Protection index IP 20
- Number of modules 4
